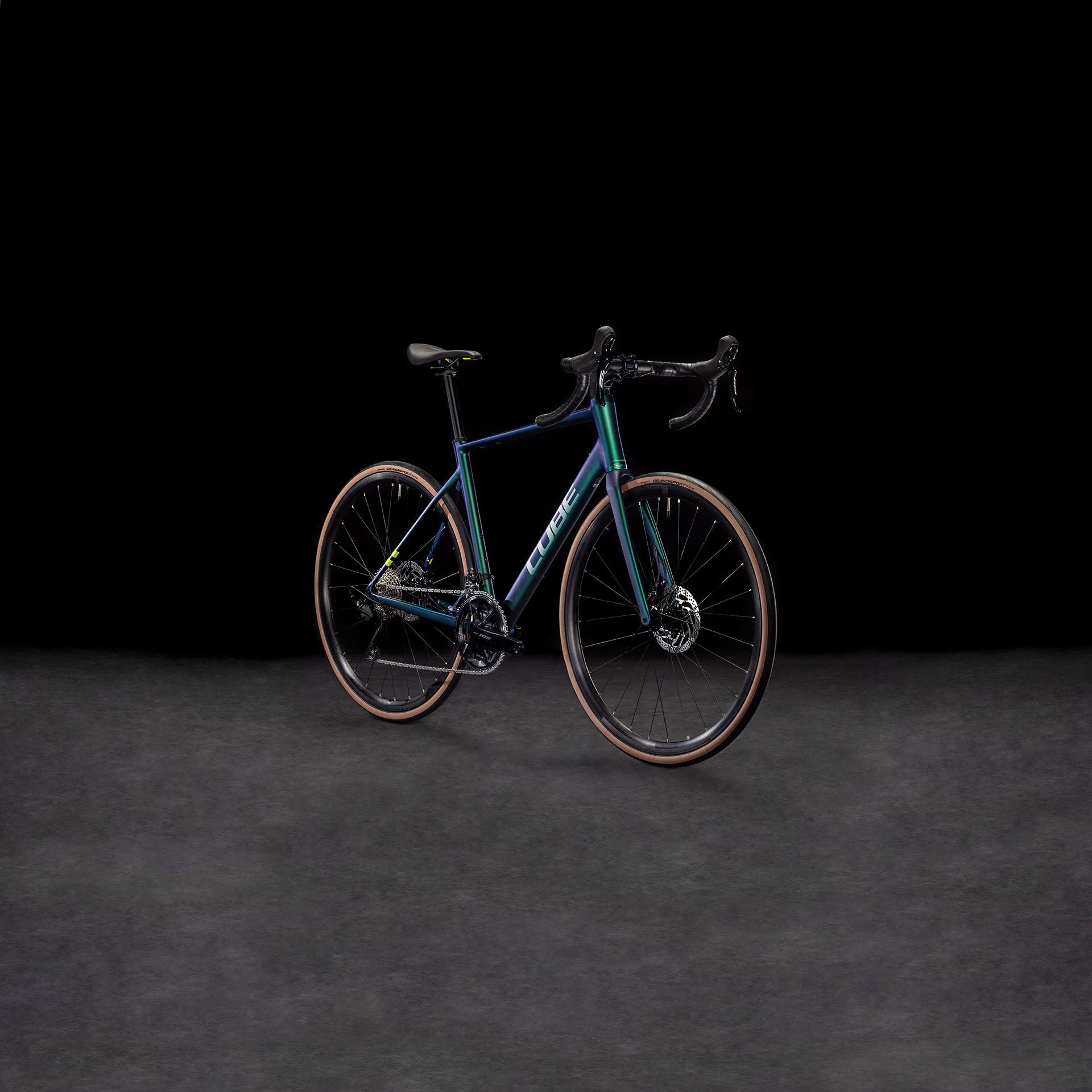

Cube Attain SLX - Goblin 'n' Yellow

Cube Attain SLX - Goblin 'n' Yellow

Stock Code: CUATTS53GY

PERFORMANCE
MEETS
COMFORT

We built the Attain's 6061 semi-aero aluminium chassis with both comfort and performance in mind. A teardrop profile down tube helps the frame slice through the air and integrated cable routing reduces clutter, while Smooth Welding gives tube joints a premium, almost organic appearance. The tapered steerer and thru axles front and rear ensure pinpoint precision accuracy and efficient power transfer. Slender seatstays and a full carbon fork help reduce road shock and vibration for significantly improved rider comfort, and there's room for tyres up to 32mm. And, with a neatly integrated seatpost clamp and mounting points under the top tube, we like to think we've thought of everything... so you can just ride.

Frame Material

Aluminium Superlite

Tire clearance

32 mm

Frame

frame

Aluminium 6061 T4/T6 Superlite, Road Comfort Geometry, Integrated Cable Routing, Flat Mount Disc, Integrated Seatpost Clamp, 12x142mm, AXH

size

47cm, 50cm, 53cm, 56cm, 58cm, 60cm, 62cm

Rigid fork

Attain C:62®, Full Carbon, Integrated Cable Routing, Flat Mount, 12x100mm

Drivetrain & brakes

shift/ brake levers

Shimano 105 ST-R7120

brake system

Shimano BR-R7170, Hydr. Disc Brake, Flat Mount (160/160)

rear derailleur

Shimano 105 RD-R7100-DGS, 12-Speed

front derailleur

Shimano 105 FD-R7100, 31.8mm Clamp

bottom bracket

Shimano BB-RS500PB, Pressfit

crankset

Shimano 105 FC-R7100, Hollowtech II, 50x34T

cassette

Shimano CS-R7101, 11-34T

chain

Shimano CN-M6100

Cockpit

headset

ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"

Stem

CUBE CIS Stem w/ Cable Routing

handlebar

CUBE Compact Race Bar

handlebar tape

ACID Bartape RC 3.0

Wheels

wheelset

CUBE RA 2.3 Aero Disc

tyres

Conti Grand Prix, Kevlar, 30-622

Finishing kit

saddle

ACID Nuance Lite

seat post

CUBE Performance Post, 27.2mm

Product information

colour

goblin´n´yellow

weight

9,8 kg

Art. No

825310

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 6

115
kg

Maximum system weight

The system weight describes the maximum permissible total mass. This must not be exceeded under any circumstances.

Geometry

47 cm 50 cm 53 cm 56 cm 58 cm 60 cm 62 cm
Seat tube 410 440 470 500 520 540 560
Top Tube Horizontal 510 517 537 560 575 590 595
Seat angle 74.6° 74.6° 74° 73.5° 73° 72.5° 72.5°
Head tube angle 70.6° 71.5° 72° 72.5° 72.5° 72.5° 72.5°
Chainstays 420 420 420 420 420 420 420
Head tube 120 130 152 182 202 222 242
Wheelbase 1000 1000 1008 1020 1020 1028 1036
BB-Height to Hub 74 74 74 74 74 74 74
Protrusion height - 80mm 709 732 759 790 808 828 848
Reach 375 378 384 391 394 396 393
Stack 525 538 561 591 610 630 648

Ergonomics

47 cm 50 cm 53 cm 56 cm 58 cm 60 cm 62 cm
Stem length 70 90 90 100 100 100 110
Handlebar width 380 400 420 420 440 440 440
Crank length 165 170 170 170 175 175 175
Length seat post 350 350 350 350 350 350 350
Diameter seatpost 27.2 27.2 27.2 27.2 27.2 27.2 27.2
Diameter tire maximum 695 695
Width tire maximum 32 32 32 32 32 32 32

All values are given in millimetres or degrees.

You can ride faster if you can stop faster, too. It's the reason that, for the Attain SLX, we chose Shimano's proven 105 hydraulic disc brakes, and matched them with the fast acceleration and superb grip of Continental's 30mm Grand Prix tyres – so you can brake later and stay in full control. Combined with the slick reliability of Shimano's iconic 105 2x12 gears, the pace of a semi-aero frame and the comfort of a full carbon fork, it makes for a bike that's as suited to a fast club run as it is to a longer weekend ride.
