Cube Editor Hybrid SLT FE 400X Goblin 'n' Glossy

Cube Editor Hybrid SLT FE 400X Goblin 'n' Glossy

simpli
CITY

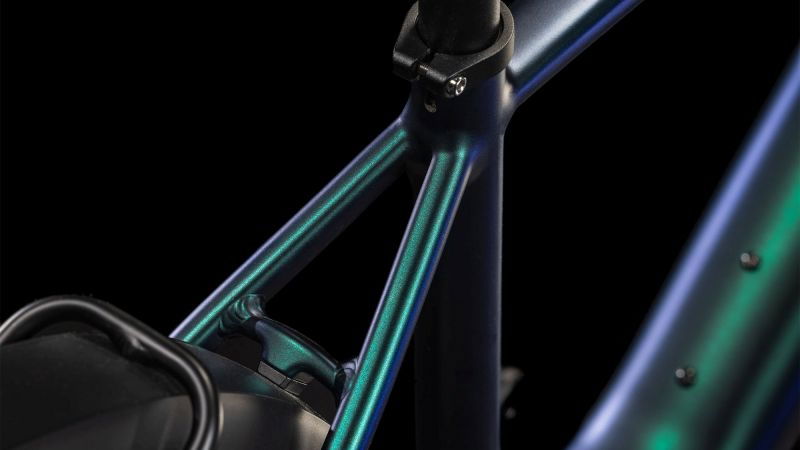

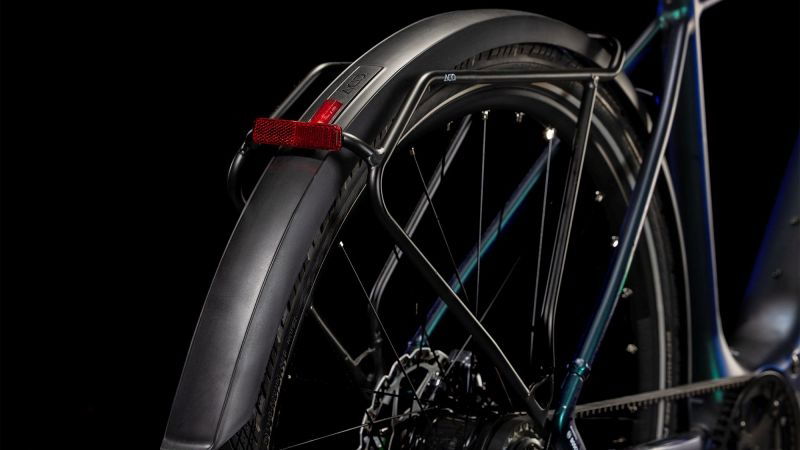

So sleek and understated is the Editor Hybrid FE's frame, at first glance it barely looks like an e-bike. Lightweight, durable aluminium construction with Smooth Welding at the main tube joints creates an elegant frame, while the full carbon fork is both light and strong. We integrated the cables for long service life and better looks, and the 400Wh battery is built into the down tube to save space and weight. There's a versatile, rugged rear carrier and an optional front carrier for carrying your belongings. And we included full mudguards, a bright lighting set and a practical kickstand, so you've got everything you need.

Frame Material

Aluminium Superlite

Battery

400 Wh

Frame

frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Advanced Internal Cable Routing, Slider Dropout

size

50 cm, 54 cm, 58 cm, 62 cm

Rigid fork

CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm

E-bike system

drive unit

Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 4A

Drivetrain & brakes

brake system

Shimano Deore BR-M6100, Hydr. Disc Brake (180)

shifters

Shimano Alfine SL-S700

crankset

ACID MTB Hybrid Pro, 52T

cassette

Gates Rear Sprocket CDC, 24T

drive belt

Gates CDC, 125T

Cockpit

Stem

CUBE Performance Stem Pro, 31.8mm

handlebar

CUBE Rise Trail Bar, 680mm

grips

ACID Hybrid Tour

Wheels

front hub

Shimano Tiagra HB-RS470, 12x100mm, Centerlock

rear hub

Shimano Alfine SG-S7001, 11-Speed

tyres

Schwalbe Marathon Efficiency, RaceGuard, 50-622

Finishing kit

saddle

Natural Fit Venec

seat post

CUBE Performance Post, 30.9mm

pedals

CUBE PP MTB

front light

ACID Front Light PRO-E 150 X-Connect, 12V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 60 BB-Mount

bell

Knog Oi

carrier

ACID Gravel

Product information

colour

goblin´n´glossy

weight

19,2 kg

Art. No

823310

Because of ongoing problems in the delivery chain, the bike can be delivered with modifications.

More Information

Bike category of use: 1

100
kg

Maximum rider weight

The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.

Geometry

50 cm 54 cm 58 cm 62 cm
Seat tube 460 510 560 600
Top Tube Horizontal 570 586 596 607
Seat angle 74.2° 74.2° 74.2° 74.2°
Head tube angle 69° 70° 70° 70°
Chainstays 477 477 477 477
Head tube 152 157 177 197
Wheelbase 1125 1131 1143 1155
BB-Height to Hub 70 70 70 70
Protrusion height - 80mm 772 807 845 876
Reach 400 413 418 424
Stack 604 613 632 650

Ergonomics

50 cm 54 cm 58 cm 62 cm
Stem length 60 75 75 90
Angle stem
Handlebar width 680 680 680 680
Crank length 175 175 175 175
Length seat post 350 400 400 400
Diameter seatpost 30.9 30.9 30.9 30.9
Max. insertion depth seat post 290 250 300 300
Diameter tire maximum 728 728 728 728
Width tire maximum 52 52 52 52

All values are given in millimetres or degrees.

Combining the minimalist appeal of an elegant frame design and full carbon fork with the practicality of a full set of accessories including lights, mudguards, a rear carrier and a kickstand, the Editor Hybrid SLT FE 400X is your understated urban concierge. There's a low maintenance, clean Gates belt drive and a Shimano 11-speed Alfine hub gear. Bosch's lightweight, smooth and powerful SX drive and 400 Wh battery work together to help you on your way. Wide, comfortable and grippy Schwalbe Marathon Efficiency 50mm tyres tackle city streets with ease, and powerful Shimano Cues hydraulic disc brakes help keep you safe.
