Cube EDITOR HYBRID PRO FE 400X Black 'n' Spectral

Cube EDITOR HYBRID PRO FE 400X Black 'n' Spectral

simpli
CITY

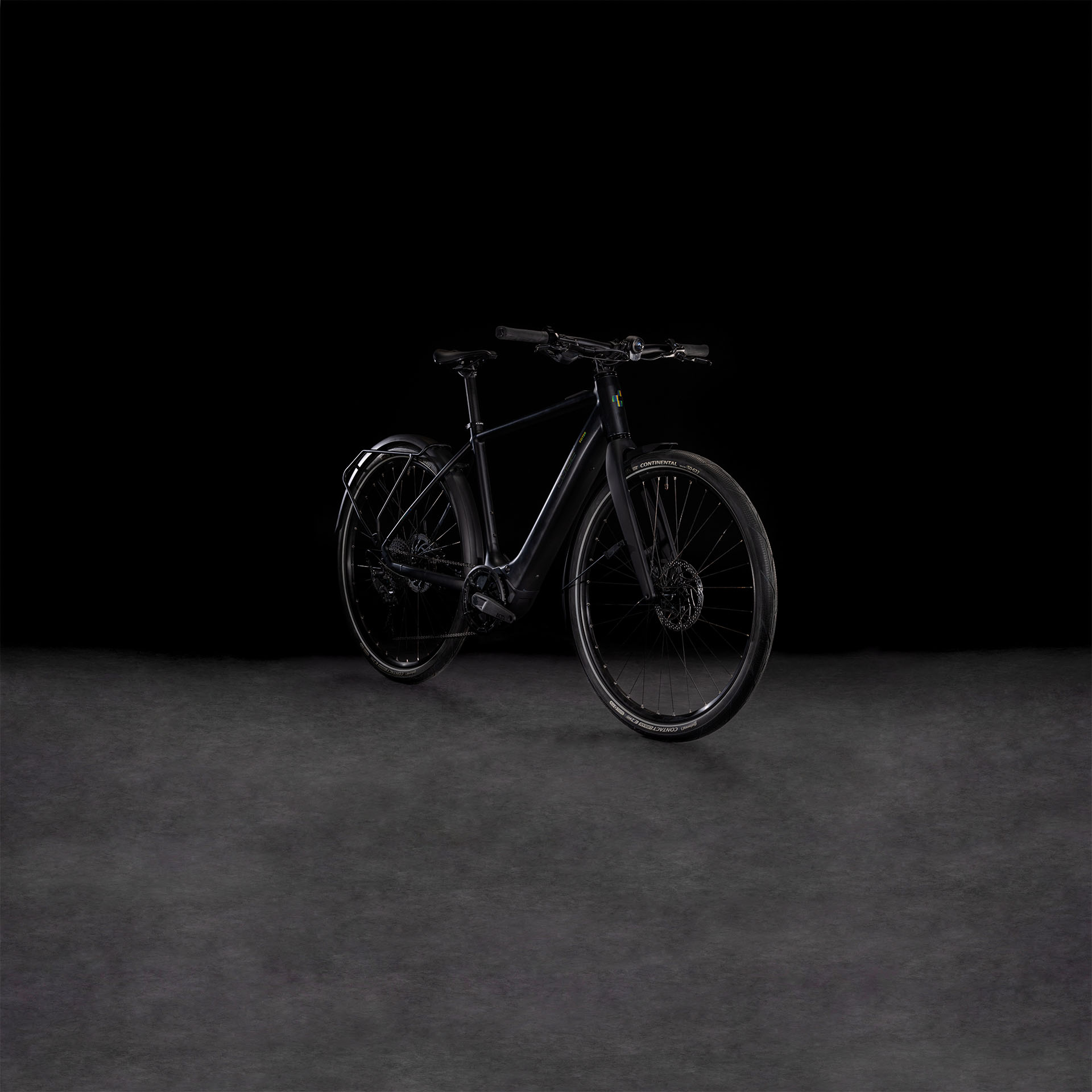

So sleek and understated is the Editor Hybrid FE's frame, at first glance it barely looks like an e-bike. Lightweight, durable aluminium construction with Smooth Welding at the main tube joints creates an elegant frame, while the full carbon fork is both light and strong. We integrated the cables for long service life and better looks, and the 400Wh battery is built into the down tube to save space and weight. There's a versatile, rugged rear carrier and an optional front carrier for carrying your belongings. And we included full mudguards, a bright lighting set and a practical kickstand, so you've got everything you need.

Frame Material

Aluminium Superlite

Battery

400 Wh

EDITOR HYBRID


Frame

frame

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Advanced Internal Cable Routing, Slider Dropout

size

50 cm, 54 cm, 58 cm, 62 cm

Rigid fork

CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm

E-bike system

drive unit

Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

Remote

Bosch System Control, incl. Mini Remote

battery

Bosch CompactTube 400

charger

Bosch 2a

Drivetrain & brakes

brake system

Shimano BR-MT200, Hydr. Disc Brake (180/180)

rear derailleur

Shimano Cues RD-U6020-SGS, 10-Speed

shifters

Shimano Cues SL-U6000, Rapidfire-Plus

crankset

ACID MTB Hybrid Pro, 44T

cassette

Shimano Cues CS-LG300, 11-39T

Cockpit

Stem

CUBE Performance Stem Pro, 31.8mm

handlebar

CUBE Rise Trail Bar, 680mm

grips

ACID Hybrid Tour

Wheels

front hub

Shimano Tiagra HB-RS470, 12x100mm, Centerlock

rear hub

Shimano FH-QC300-HM, QR, Centerlock

tyres

Conti Contact Urban, 50-622

Finishing kit

saddle

Natural Fit Venec

seat post

CUBE Performance Post, 30.9mm

pedals

CUBE PP MTB

front light

ACID Front Light PRO-E 110, 5-16V, DC

rear light

ACID Mudguard Rear Light PRO-E, 12V, DC

kickstand

ACID FM Pure Kickstand

mudguards

ACID 60 BB-Mount

bell

Knog Oi

carrier

ACID Gravel

Product information

colour

black´n´spectral

weight

18,6 kg

Art. No

823110

Geometry

  50 cm 54 cm 58 cm 62 cm
Seat tube 460 510 560 600
Top Tube Horizontal 570 586 596 607
Seat angle 74.2° 74.2° 74.2° 74.2°
Head tube angle 69° 70° 70° 70°
Chainstays 477 477 477 477
Head tube 152 157 177 197
Wheelbase 1125 1131 1143 1155
BB-Height to Hub 70 70 70 70
Protrusion height - 80mm 772 807 845 876
Reach 400 413 418 424
Stack 604 613 632 650

Ergonomics

  50 cm 54 cm 58 cm 62 cm
Stem length 60 75 75 90
Angle stem
Handlebar width 680 680 680 680
Crank length 175 175 175 175
Length seat post 350 400 400 400
Diameter seatpost 30.9 30.9 30.9 30.9
Max. insertion depth seat post 290 250 300 300
Diameter tire maximum 728 728 728 728
Width tire maximum 52 52 52 52

All values are given in millimetres or degrees.





This is it: the fast, easy and practical way go get across town. The Editor Hybrid Pro FE 400X's lightweight Bosch SX drive system, built-in 400Wh battery and integrated controller help make light work of any journey, but that's just the start. We included a sturdy carrier, so you can carry whatever you need to take with you. Mudguards, to help keep you dry. A practical kickstand, for easy parking. And bright lights, so you can see and be seen. Add Shimano's slick 10-speed Cues gears, reassuringly strong Shimano hydraulic disc brakes and grippy Continental tyres, and you're all set to take on the urban jungle, on your terms.
